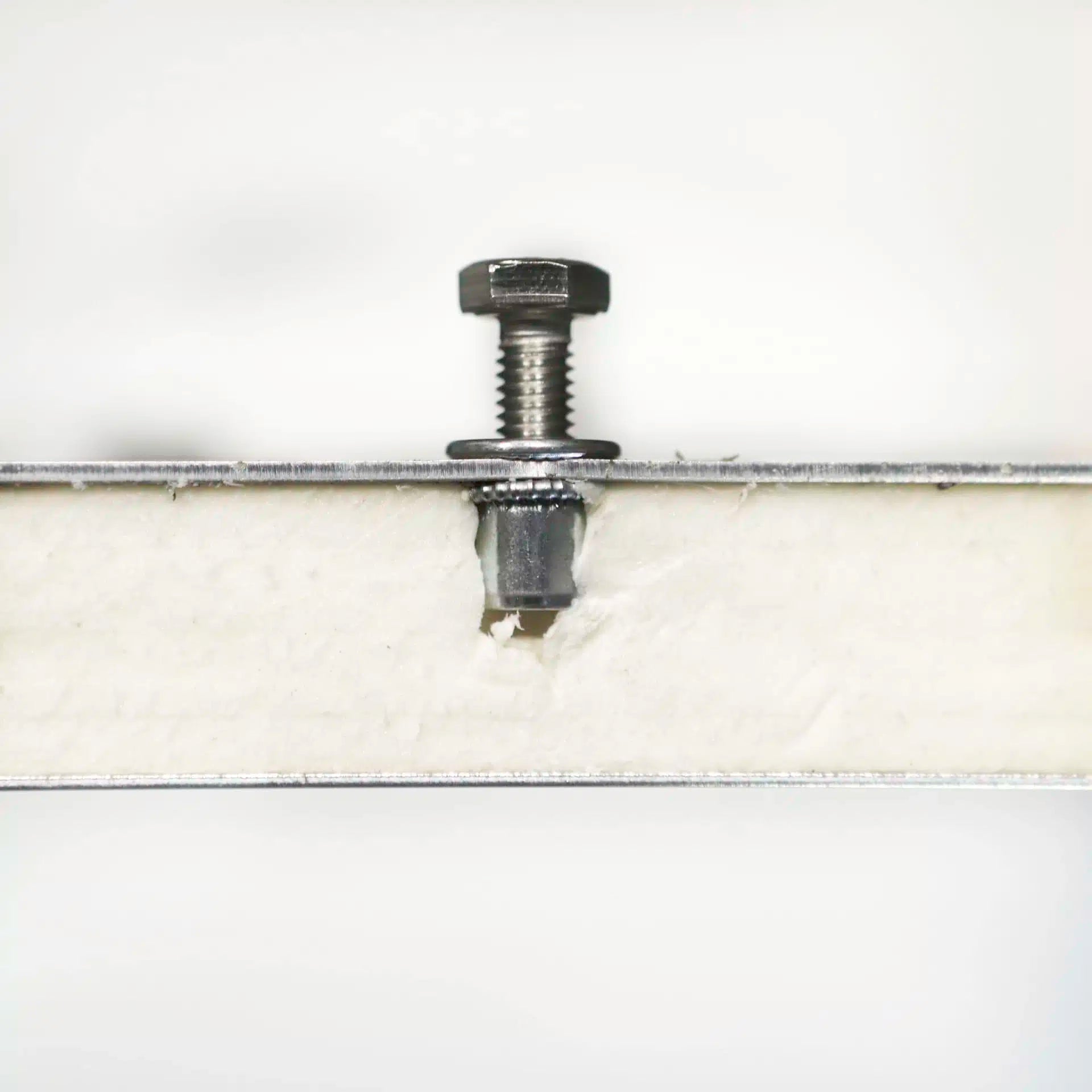

A purpose-built 25 mm insulated sandwich floor for Mercedes-Benz Sprinter and first-generation Volkswagen Crafter campervan conversions. Its three-layer construction combines a protective aluminium underside, an XPS insulation core and a high-strength aluminium top surface.

Key features

• Integrated structural floor and thermal insulation in one lightweight system
• Water-resistant construction with no timber layer to absorb moisture
• Designed to remain quiet in use without rattles or squeaks
• Pre-engineered around the vehicle floor and aligned with existing OEM mounting holes
• Supplied with the required rivet set
• Optional woven PVC finish can be glued down or installed loose

Vehicle compatibility

Suitable for Mercedes-Benz Sprinter W906 and W907, and Volkswagen Crafter first generation. Designed for vans from 2006 onwards with the sliding door on the right-hand side.

Configuration and installation

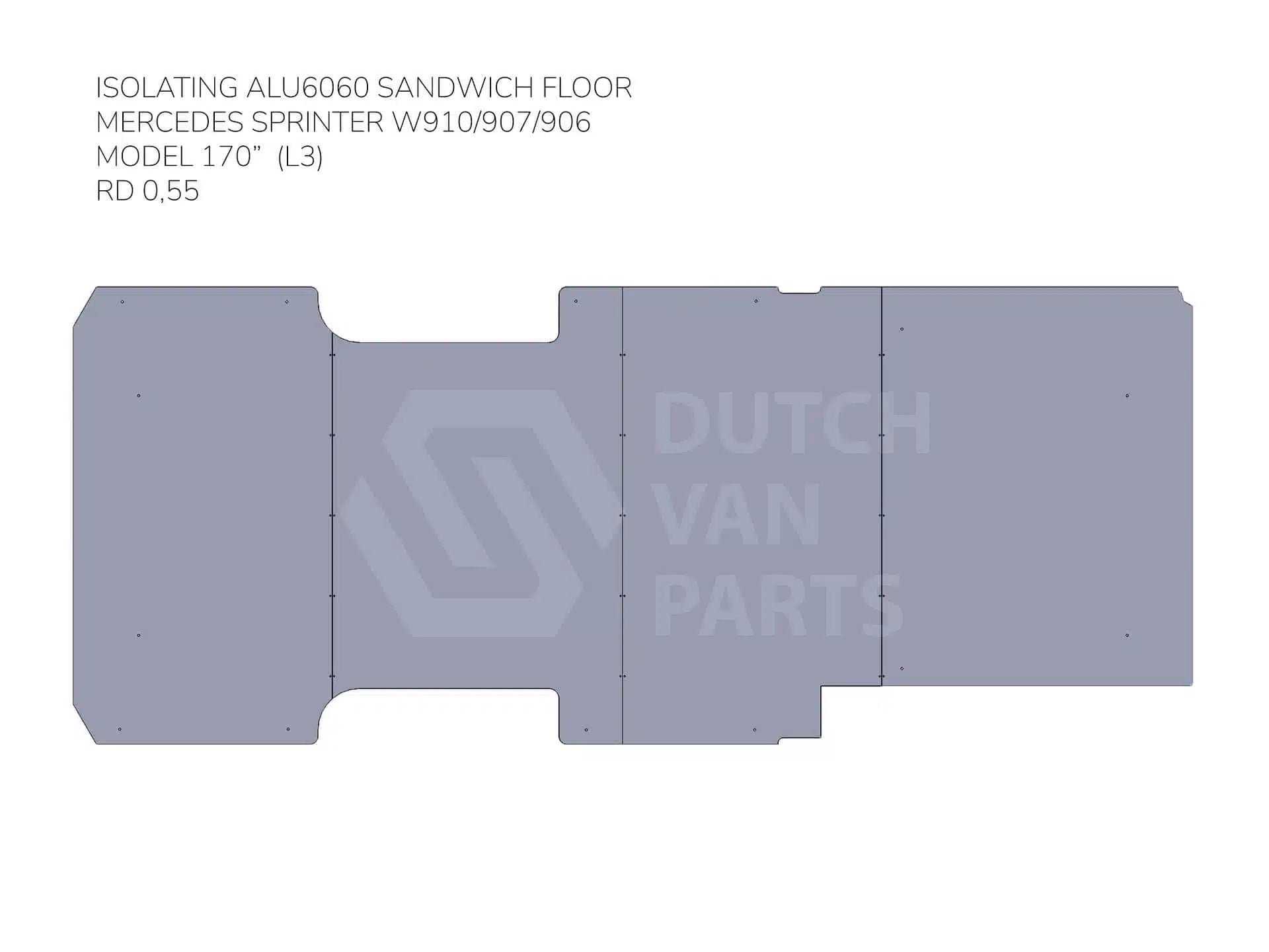

Choose the correct van length and optional floor finish. The L2 floor is supplied in three sections; the L3 floor is supplied in four sections. Dry-fit and check all panel positions and OEM-hole alignment before riveting. Installation should be carried out by a competent converter or technician.
